Fig-250, Clapet à soupape, Rückschlagventil, Lift check valve, cast iron, fonte, Grauguß
Fig-250
Lift check valve
with spring
body: cast iron GG25
seat: 13Cr
flanged PN10 / 16
DN15 - DN300
Technical sheet
Fig-261C, Rückschlagventil, Clapet à soupape, Lift check valve, carbon steel, acier, Stahlguß, PN40
Fig-261C / 262C
Lift check valve
with spring
body: carbon steel GS-C25
seat: 13Cr
flanged PN16 / 25 / 40
DN15 - DN400
Technical sheet
Fig-261C, Rückschlagventil, Clapet à soupape, Lift check valve, stainless steel, inox, Edelstahl, PN40
Fig-281/282
Lift check valve
with spring
body: stainless steel 1.4408
seat: 13Cr
flanged PN16 / 25 / 40
DN15 - DN400
Technical sheet

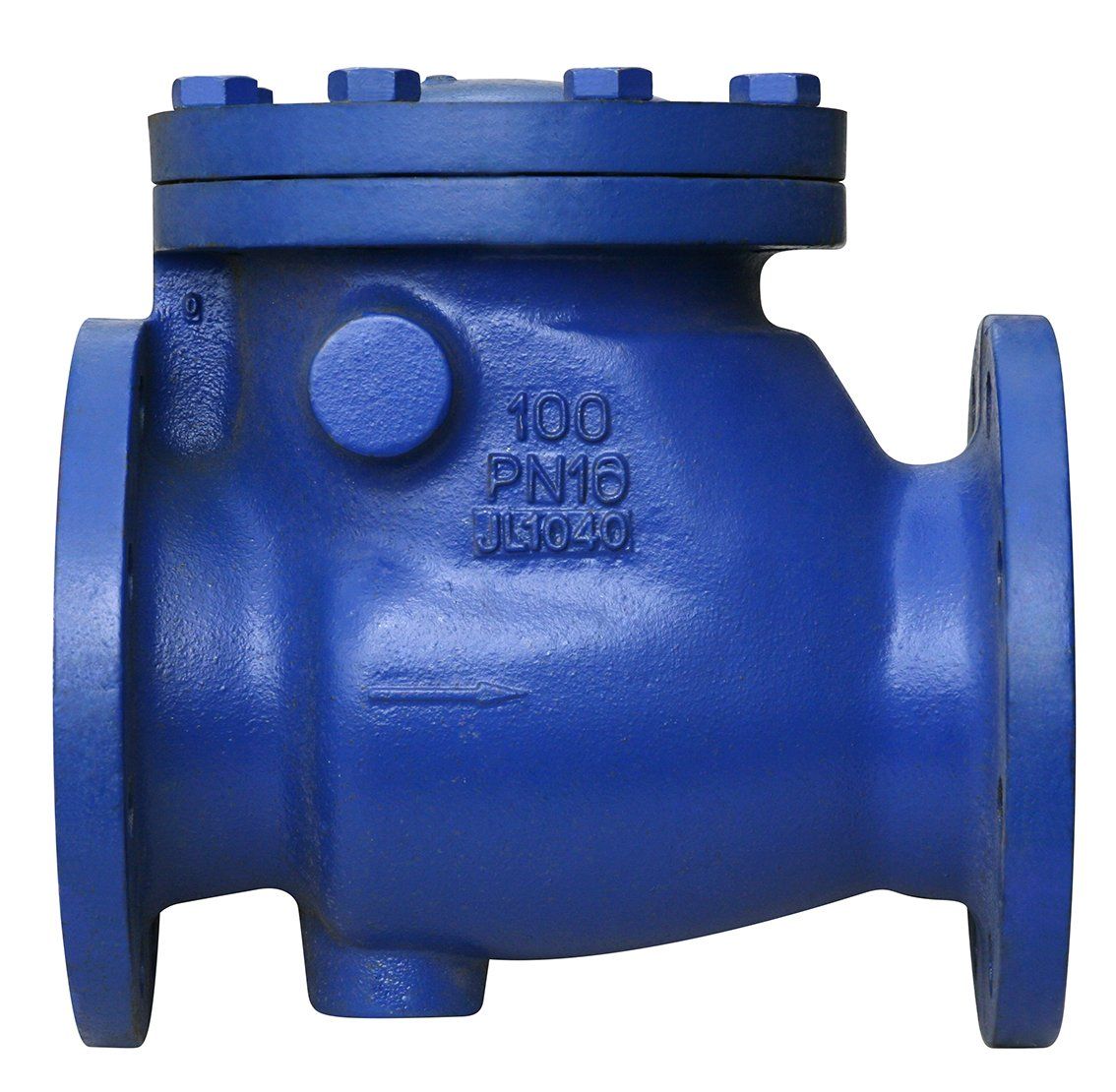

Fig-406
Swing check valve
body: cast iron GG25
seat: 13Cr
flanged PN10 / 16
DN40 - DN300
Technical sheet

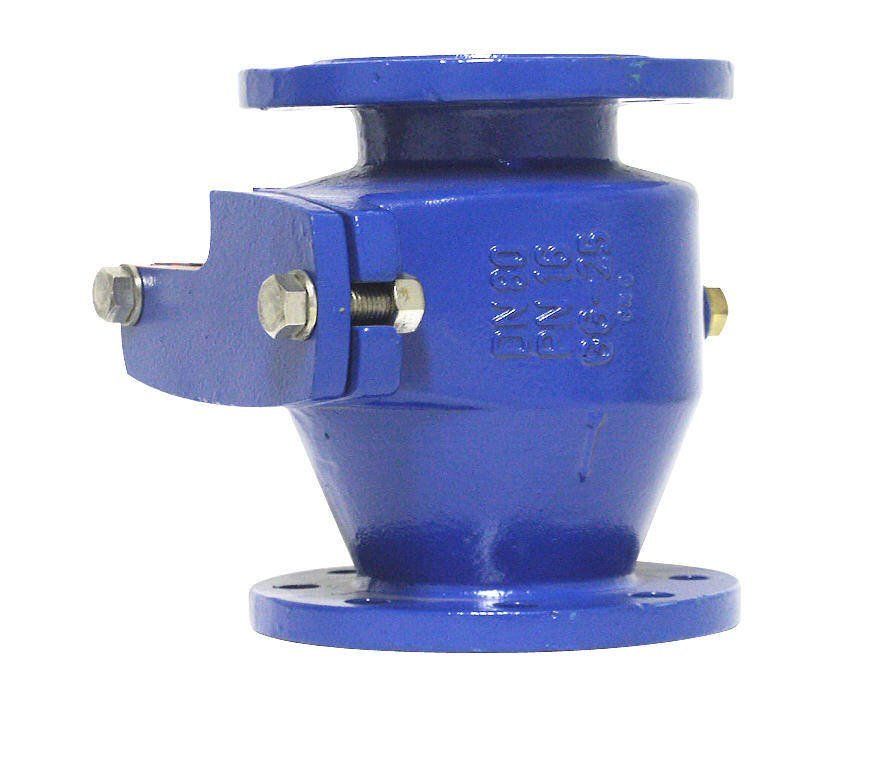

Fig-430
DIN Swing check valve
body: ductile iron
valve: NBR / EPDM
flanged PN10 / 16
DN40 - DN500
Technical sheet

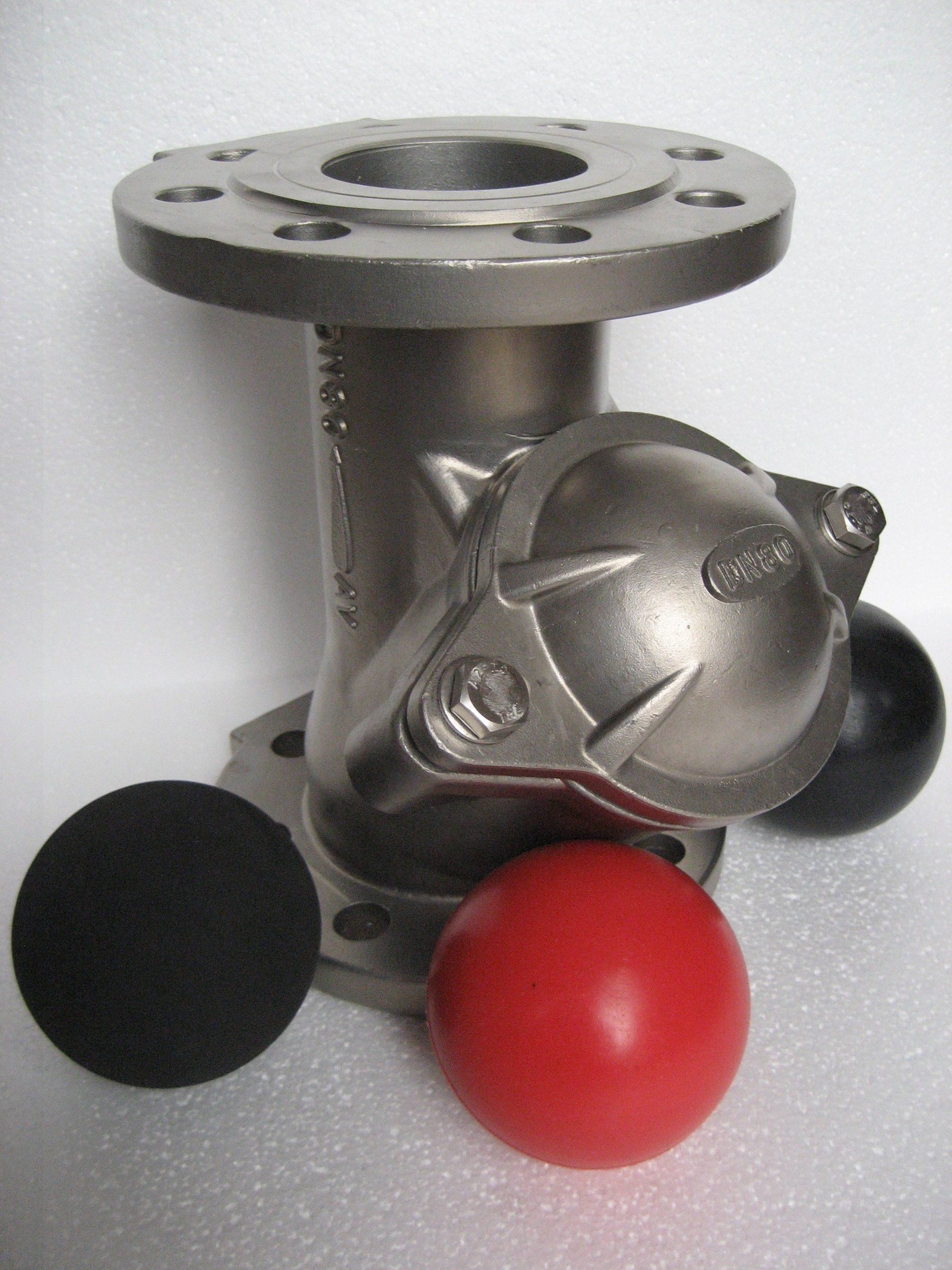

Fig-441
Ball check valve
body: AISI SS316
ball: NBR or EPDM
flanged PN16
DN50 - DN300
Technical sheet
Fig-451
Swing check valve
body: carbon steel GS-C25
seat: 13Cr
flanged PN10 / 16
DN40 - DN600
Technical sheet
Fig-452, Clapet à battant, Rückschlagklappe, Swing check valve, carbon steel, acier, Stahlguß, PN25
Fig-452
Swing check valve
body: carbon steel GS-C25
seat: 13Cr
flanged PN25
DN40 - DN600
Technical sheet
Fig-452, Clapet à battant, Rückschlagklappe, Swing check valve, carbon steel, acier, Stahlguß, PN25
Fig-453
Swing check valve
body: carbon steel GS-C25
seat: 13Cr
flanged PN40
DN40 - DN600
Technical sheet
Fig-461, Rückschlagklappe, Swing check valve, Clapet à battant inox, PN16, stainless steel, Edelstahl
Fig-461
Swing check valve
body: stainless steel 1.4408
seat: stainless steel
flanged PN10 / 16
DN40 - DN600
Technical sheet

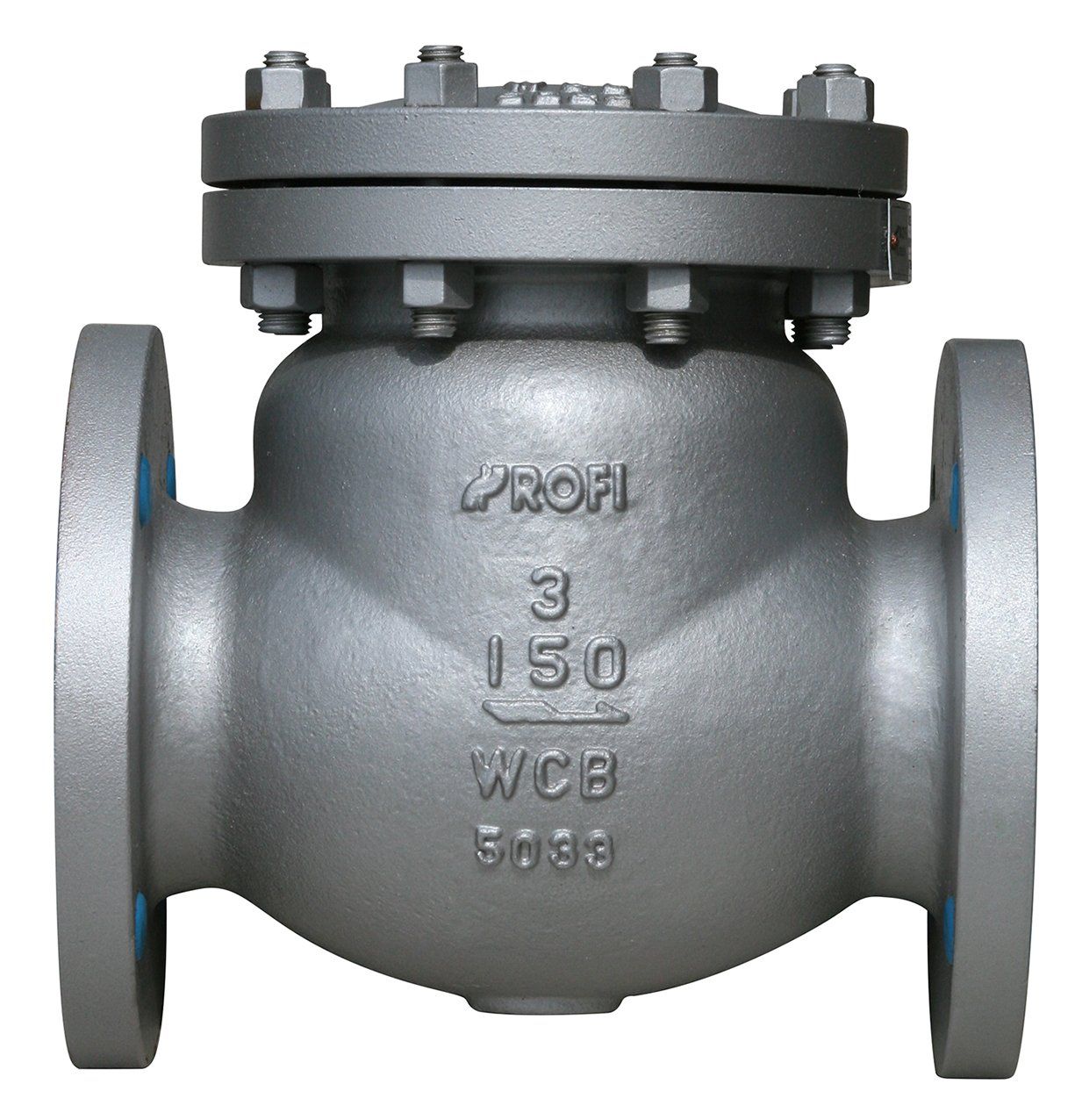

Fig-470
ANSI Swing check valve
body: carbon steel A216 WCB
trim: N° 8
flanged series 150 lbs
DN 2 "- 20"
Technical sheet
Fig-471
ANSI Swing check valve
body: carbon steel A216 WCB
trim: N° 8
flanged series 300 lbs
DN 2 "- 20"
Technical sheet
Fig-472
ANSI Swing check valve
body: carbon steel A216 WCB
trim: N° 8
flanged series 600 lbs
DN 2 "- 20"
Technical sheet
