DOWNLOAD TECHNICAL DATA SHEETS

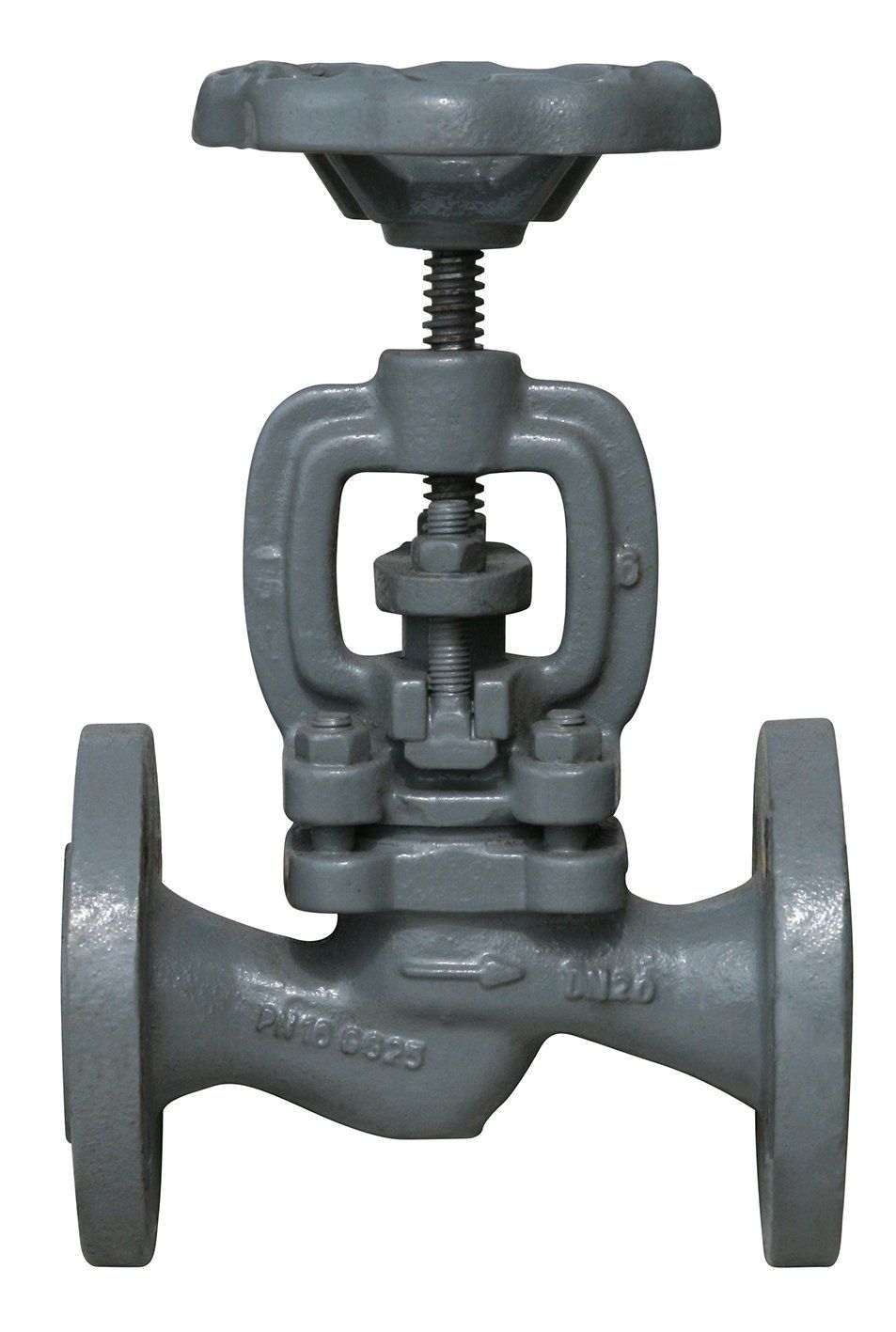

Fig-101
Globe valve
body: cast iron GG25
contacts: 13Cr
flanged PN10 / 16
DN15 - DN300
Technical sheet
Fig-121C, Absperrventil, Stahlguß, Robinet à soupape, Globe valve, carbon steel, acier, PN40
Fig-121C / 122C
Globe valve
body: carbon steel GS-C25
contacts: 13Cr
flanged PN16 / 25 / 40
DN15 - DN400
Technical sheet
Fig-201/211
Globe valve
body: stainless steel 1.4408
contacts: stainless steel
flanged PN10 / 16 / 25 / 40
DN15 - DN400
Technical sheet

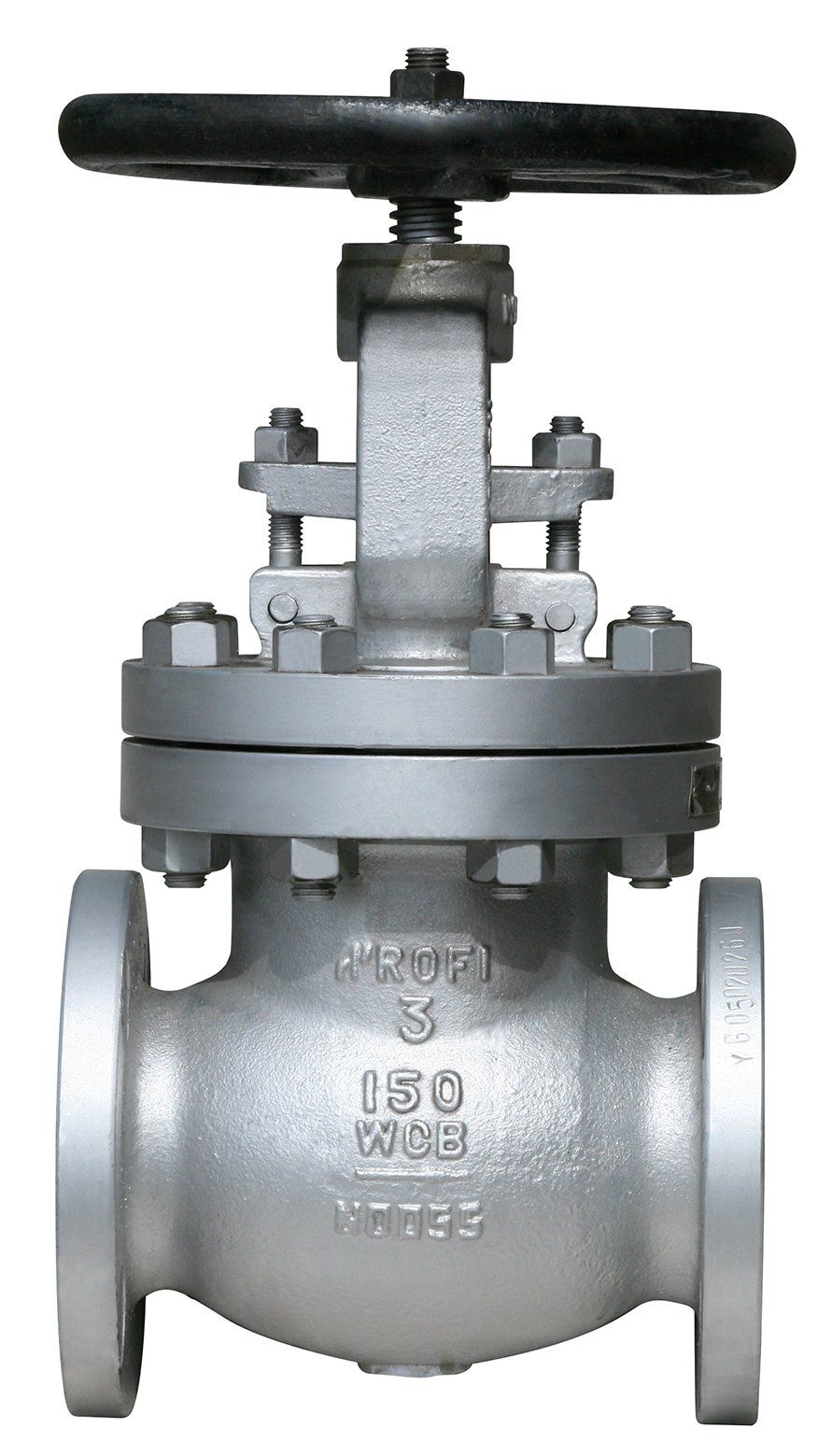

Fig-140
ANSI globe valve
body: carbon steel A216 WCB
trim: N° 8
flanged series 150 lbs
DN 2 "- 12"
Technical sheet
Fig-141
ANSI Globe valve
body: carbon steel A216 WCB
trim: N° 8
flanged series 300 lbs
DN 2 "- 12"
Technical sheet
Fig-142
ANSI Globe valve
body: carbon steel A216 WCB
trim: N° 8
flanged series 600 lbs
DN 2 "- 12"
Technical sheet
